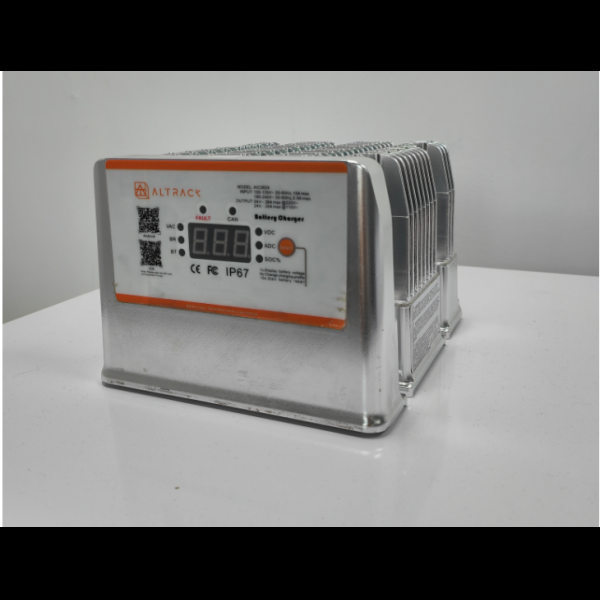

AIC3624 is an 864W power, suitable for high reliability of 24V different battery types on the Aerial work platform, the product meets the CE, FCC CB ceTLus certification, cast aluminum integrated molding, IP67 protection, natural heat dissipation, beautiful appearance, powerful function.
❆ Wide voltage 85-265Vac 47-63Hz input, output current 36A, constant power. Minimum input operating voltage up to 75Vac.
❆ Displays the AC voltage, output voltage, current, SOC percentage. The indicator has various functions.
❆ with high/low voltage, short circuit, over temperature, reverse and other protection functions, high temperature automatic power limit. Input up to 420Vac without damage.
❆ is equipped with CAN and Bluetooth functions as standard. Turn on the Bluetooth of the mobile phone and connect to the charger through the Anchong Heavy Industry APP to manage and view the status, mode, curve and record of the charger, which is convenient for after-sales.
❆ Built-in powerful battery repair function (BR), according to the battery repair parameters to set the recovery curve, the over-discharged battery recovery.
❆ Product size: 209L * 186W * 138H Unit: mm
